1. When the sub-cylinder is working, the separation fork will separate the clutch pressure plate and sheet from the flywheel, and then the gear shift can be started; 2. Release the clutch, the sub-cylinder stops working, the clutch pressure plate and the sheet are in contact with the flywheel, and the power continues to be transmitted. The oil of the sub-cylinder returns to the fuel tank; 3. When shifting is difficult and the separation is not complete, it is necessary to check that there is no oil leakage in the sub-cylinder of the clutch master cylinder. If there is any problem, solve it in time to reduce wear and tear, and other inspections should be carried out accordingly.
Product parameters
| OE Code | LF481Q1-1702160A |

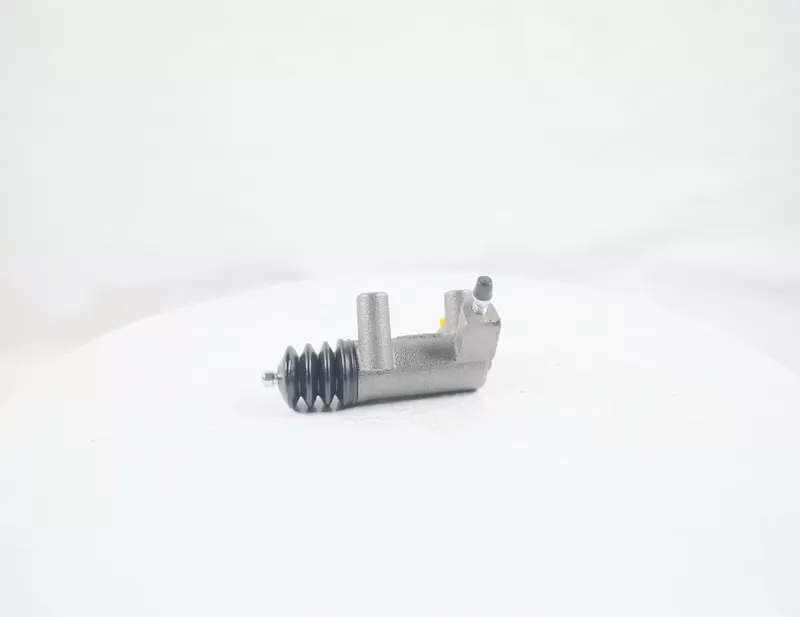

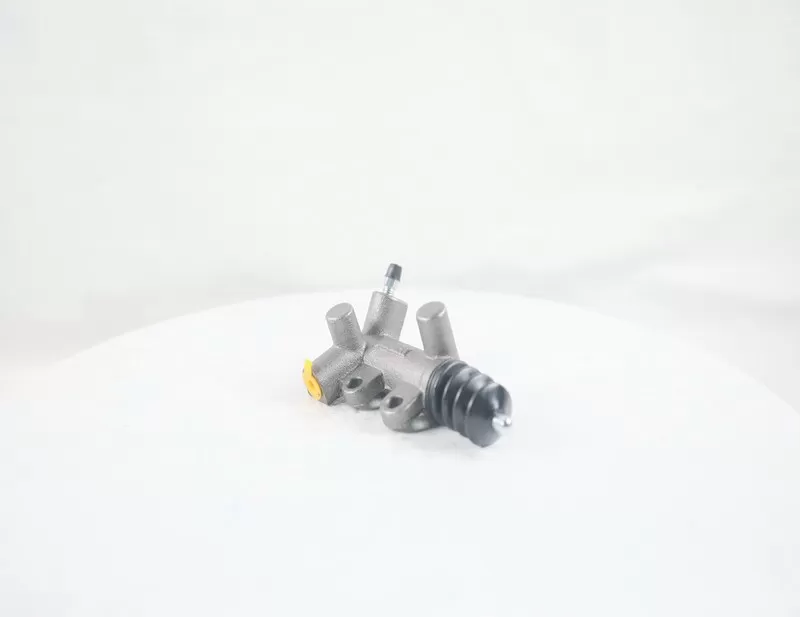

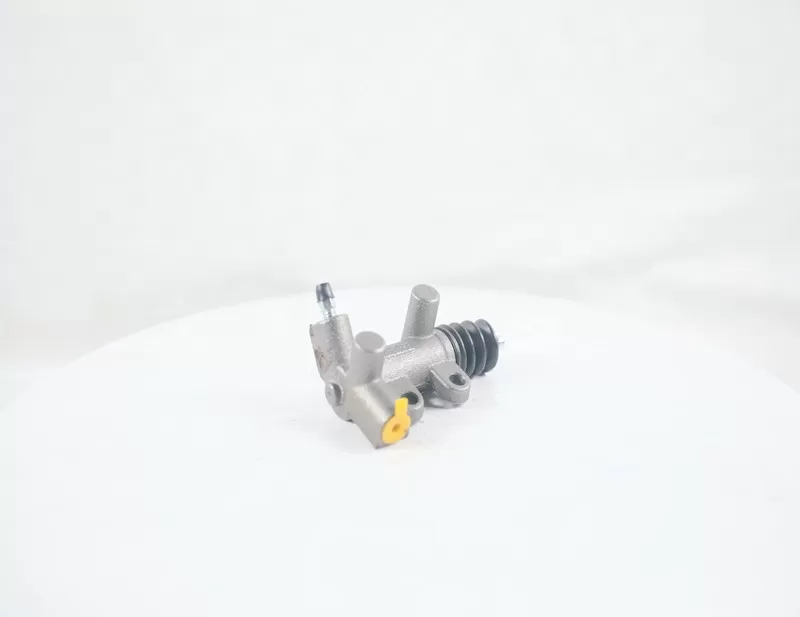

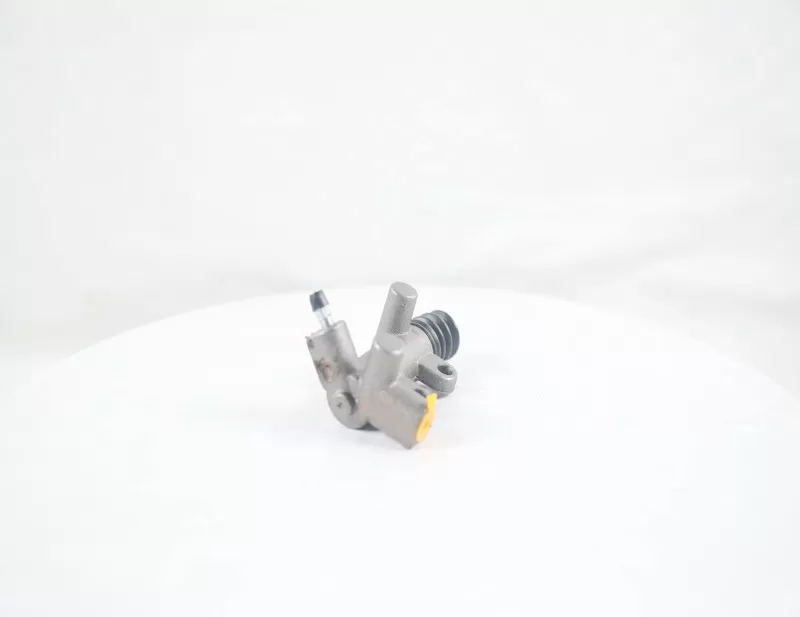

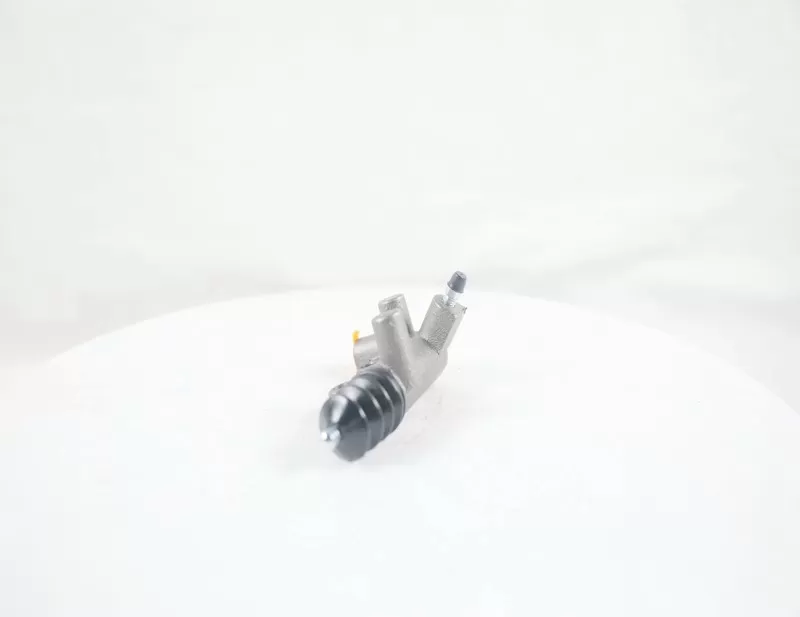

| Product Name | Clutch slave cylinder |
| Applicable Car Model | Lifan 620 |
| Application Field | Lifan 620 |
| Product Features | 1. When the sub-cylinder is working, the separation fork will separate the clutch pressure plate and sheet from the flywheel, and then the gear shift can be started; 2. Release the clutch, the sub-cylinder stops working, the clutch pressure plate and the sheet are in contact with the flywheel, and the power continues to be transmitted. The oil of the sub-cylinder returns to the fuel tank; 3. When shifting is difficult and the separation is not complete, it is necessary to check that there is no oil leakage in the sub-cylinder of the clutch master cylinder. If there is any problem, solve it in time to reduce wear and tear, and other inspections should be carried out accordingly. |
| Brand | original |
| Net Weight (Kg) | 0.494 |
| Product Dimension (m) | 0.075*0.055*0.13 |
| Gross Weight (Kg) | 0.523 |
| Packaging Dimension (m) | 0.075*0.133*0.053 |
| Packaging Standard | color |
| Materials | aluminum alloy |
| Product Condition | brand new |
| Country of Origin | China |
| Warranty | 6 months |
| MOQ | 10 |
